Description
| Motor Power | 2 HP |
| Brand | Easy |
| Power Source | 3 phase |
| Thickness Of Plate | 130mm |
| Minimum Distances Between Two Dies | 2.5″ |
| Automation Grade | semi automatic |
| Finishing | grounded knives |
| Gross Weight | 2200 kilograms |
| Material | Cast iron, Mild steel, Carbon steel & EN 31 steel |
| Phase | 3 phase |
| Size/Dimension | 65″,75″,85″,95″,105″ |
| Usage/Application | Cutting & creasing of 3,5,7,9, etc plys |
| Voltage | 440 volts |
| Weight | 2200 kilograms |
| Feeding Type | Hand Feed |
| Country of Origin | Made in India |

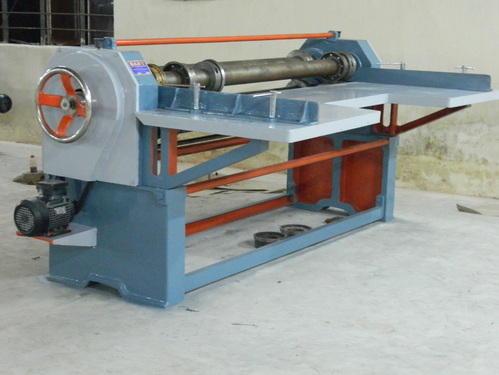

We are offering Heavy Duty Four Bar Rotary Cutting and Creasing Machines. This is useful for cutting and creasing simultaneously. The machines with two pairs of shafts with 8 cutting dies and creasing dies. The front pair is with cutting dies & rear pair is with creasing dies. The lower shaft of each pair can be raised or lowered by revolving side wheel depending on ply of the board. For easy feeding two guides are provided.
Technical Specification :
Machine Size65”75”85”95”105”Motor (H. P)11.51.522Floor Size55” x 85”55” x 100”55” x 110”55” x 120”55” x 130”Machine Height48”48”48”48”48”Production Capacity50005000500050005000
