Description
| Usage/Application | For making 2 ply |
| Hydraulic Reel Stand Hp | 2 HP |
| Brand/Make | EASY |
| Capacity | 0-10 Ton/Day |
| Speed | 0-50 meters/min |
| Automatic Grade | Semi-Automatic |
| Automation Grade | Semi-Automatic |
| Voltage | 440 volts |
| Dimension L W H | 14′ 8′ 6.5′ |
| Fingerless System | optional |
| Motor Hp | 5 HP |
| Model Name/Number | High speed oblique |
| Power W | 3.75 kilowatt |
| Raw Material | Cast Iron, Mild Steel and EN grade |
| Warranty | One year against manufacturing defect only |
| Country of Origin | Made in India |

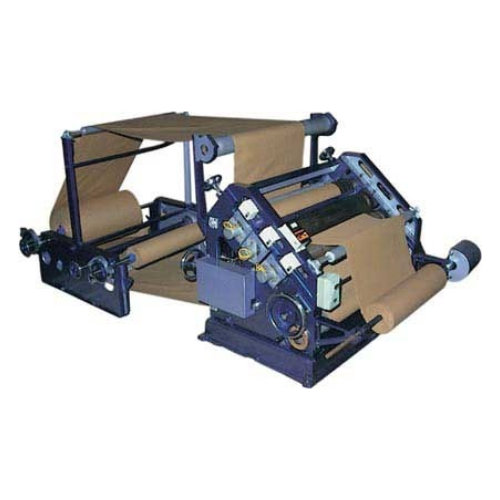

We are offering Oblique Type Bearing Mounted Single Face Paper Corrugated Machines. Available in various types of flutes to fulfill the customers requirements. Flute Rollers made of high grade EN-19 Steel. Bearing mounted for manufacturing 2 ply corrugated board attached with motorized hydraulic self loading reel stand with double arm lifting Shafts, A C Drive, Branded Motor, Stainless Steel Gum Tray, Centralized Lubrication System. Two unwinding shaft for paper reels.
Technical Specification :
Machine Size42”52”62”Motor Required (H.P)5 & 27. 5 & 27. 5 & 2Heating Load (K.W)323234Floor Space96” x 180”110” x 200”130” x 205”Machine Height72”72”72”Production Capacity (rf/min)120120120
