Description
| Capacity | 52″ and more |
| Usage/Application | For making 2 ply |
| Speed | 80 to 90 feet per minute |
| Hydraulic Reel Stand Hp | 2 HP |
| Brand/Make | EASY |
| Automation Grade | Semi-Automatic |
| Output Paper Width | 52″ and more |
| Voltage | 440v |
| Dimension L W H | 14′ 8′ 6.5′ |
| Fingerless System | Full finger 8.25″ |
| Motor Hp | 5 HP |
| Steam Pressure | Tubular Heater |
| Model Name/Number | Vertical Bearing |
| Raw Material | Cast Iron, Mild Steel and EN grade |
| Table Size Inch | 52″ |
| Warranty | One year against manufacturing defect only |
| Country of Origin | Made in India |

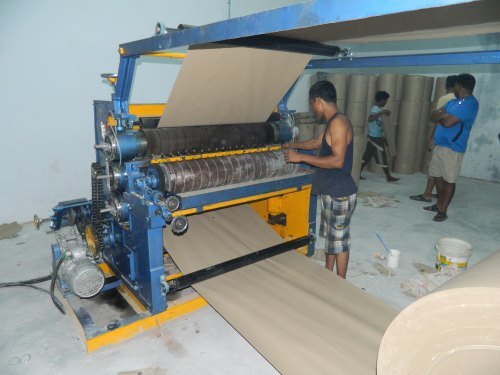

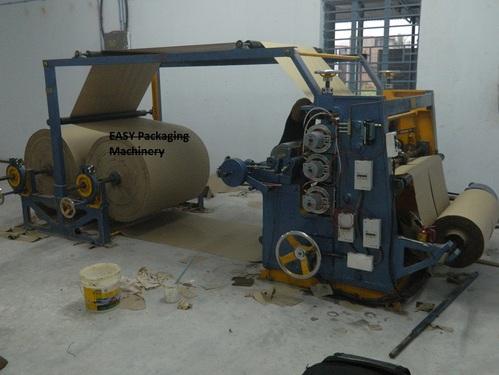

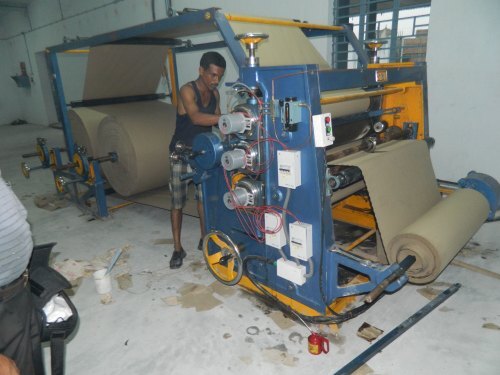

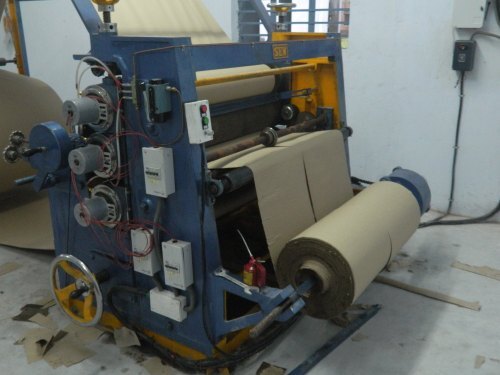

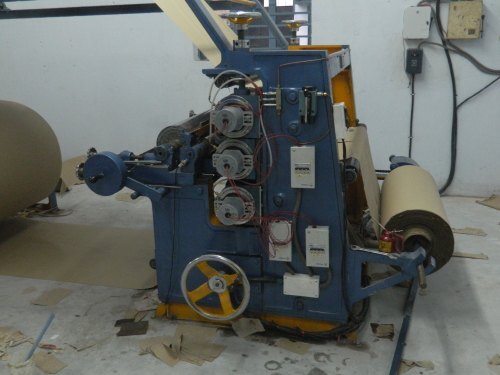

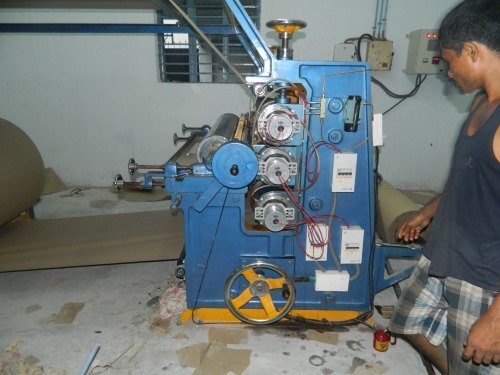

The Vertical Model is sturdy in construction and simple to operate. The rollers are bearing mounted for smooth running and Electric heaters are provided for appropriate conversion of paper to 2 ply corrugated sheets. The machine is provided with manually operated twin shaft reel stand. The variable speed motor is recommended for better quality & economy in wastage at an additional cost. Motorized reel stand can be provided at an additional cost.
Technical Specification :
Machine Size32”42”45”52”62”Motor Required (H. P) (Manual Reel Stand)35557.5Motor Required (H. P) (Motorised Reel Stand)-5 & 25 & 25 & 27. 5 & 2Heating Load (K. W)1215161821Floor Space80” x 165”90” x 175”95” x 175”101” x 185”120” x 185”Machine Height70”70”70”80”80”Production Capacity (rf/min)7070707070
